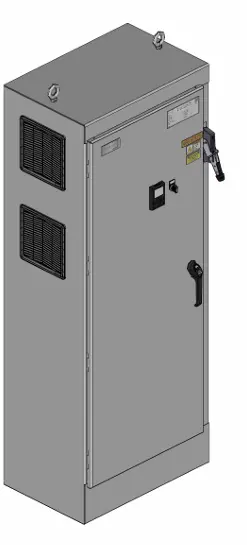

Enclosed VFD, 75 HP – Siemens G120 FSE, Type 12R with 3-Contactor Bypass
A pre-engineered, UL-listed enclosed Variable Frequency Drive (VFD) assembly designed and built by Think-PLC for 480V, 3-phase motor applications up to 75 HP. Engineered for demanding industrial environments, this Type 12R rated enclosure provides dependable control, integrated bypass capability, and simplified installation for your facility.
Drive: Siemens SINAMICS G120 (PM240-2 Power Module, CU240E-2 PN Control Unit)
Power Rating: 75 HP (96A Full Load)
Voltage: 480 VAC, 3-Phase, 60 Hz
Enclosure: UL Type 12R, powder-coated steel (indoor rated)
Bypass: 3-Contactor Bypass with mechanical interlock

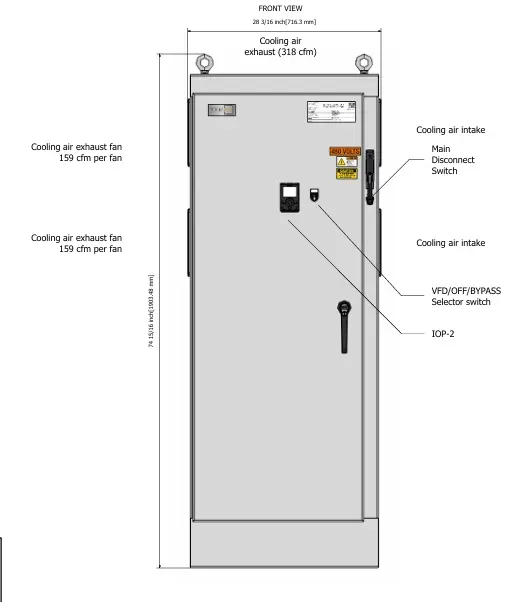

Cooling: Dual 159 CFM fan assemblies with filtered air intake
Protection: Main disconnect, circuit breakers, and overload relay
Interface: Siemens IOP-2 door-mounted operator panel
Communications: Profinet-ready, RJ45 external port access
Certifications: UL508A compliant design and labeling
Manufactured in the USA by Think-PLC
